TreeView checked node text and navigate url
TreeView has ability to display a checkbox next to each node. checkbox allow us to
select treeview nodes. treeview ShowCheckBoxes property help us to show checkbox on treeview specific nodes.
a node can be one mode at a time from selection mode and navigation mode. selection mode is treeview node's default mode.
but you can set a node mode to navigation mode. just put a value to NavigateUrl property value other than empty string ("")
to convert a node to navigate mode. if you set the NavigateUrl property value empty string then it will make the node mode to
selection mode.

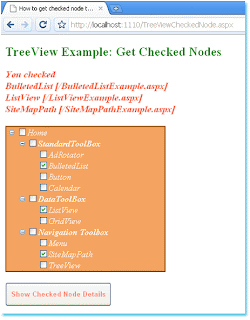

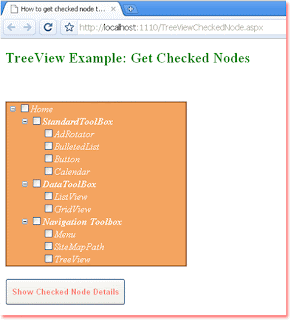

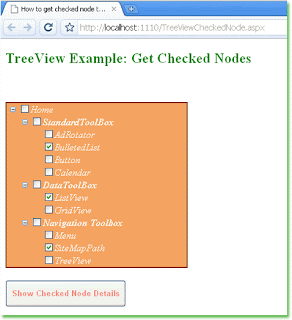

this c# example code demonstrate us how can we get the treeview checked nodes text and it's navigate url programmatically.
TreeViewCheckedNode.aspx
<%@ Page Language="C#" %>
<%@ Import Namespace="System.Drawing" %>
<!DOCTYPE html>
<script runat="server">
protected void Page_Load(object sender, System.EventArgs e)
{
if(!this.IsPostBack)
{
TreeView1.ForeColor = Color.FloralWhite;
TreeView1.BackColor = Color.SandyBrown;
TreeView1.BorderWidth = 2;
TreeView1.BorderColor = Color.SaddleBrown;
TreeView1.Font.Italic = true;
TreeView1.Width = 300;
TreeView1.ParentNodeStyle.Font.Bold = true;
TreeView1.ShowCheckBoxes = TreeNodeTypes.All;
}
}
protected void Button1_Click(object sender, System.EventArgs e)
{
Label1.Text = "You checked";
foreach (TreeNode node in TreeView1.CheckedNodes)
{
Label1.Text +="<br />"+ node.Text + " [" + node.NavigateUrl + "]";
}
}
</script>
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
<title>How to get checked node text and NavigateUrl in TreeView</title>
</head>
<body>
<form id="form1" runat="server">
<div>
<h2 style="color:Green">TreeView Example: Get Checked Nodes</h2>
<asp:SiteMapDataSource ID="SiteMapDataSource1" runat="server" />
<asp:Label
ID="Label1"
runat="server"
ForeColor="Tomato"
Font-Italic="true"
Font-Size="Large"
Font-Bold="true"
>
</asp:Label>
<br /><br />
<asp:TreeView
ID="TreeView1"
runat="server"
DataSourceID="SiteMapDataSource1"
>
</asp:TreeView>
<br />
<asp:Button
ID="Button1"
runat="server"
ForeColor="Salmon"
Text="Show Checked Node Details"
Height="45"
OnClick="Button1_Click"
Font-Bold="true"
/>
</div>
</form>
</body>
</html>
Web.sitemap
Web.sitemap source code here.
